LIGHTING SYSTEMS LOCATION INDEX [(E)]

id0918007001x2

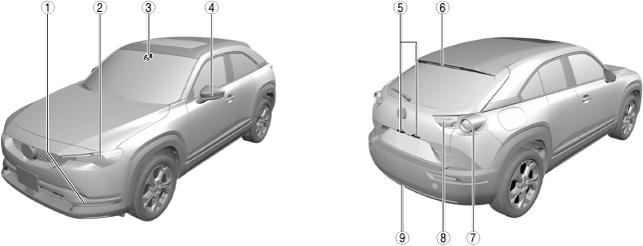

Exterior

a30zzw00002958

1	Front turn light/parking light (See FRONT TURN LIGHT/PARKING LIGHT REMOVAL/INSTALLATION.) (See FRONT TURN LIGHT/PARKING LIGHT INSPECTION.) (See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION.) (See PARKING LIGHT BULB REMOVAL/INSTALLATION.)
2	Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.) (See FRONT COMBINATION LIGHT INSPECTION.) (See HEADLIGHT BULB REMOVAL/INSTALLATION.) (See HEADLIGHT AIMING [(E)].) (See RUNNING LIGHT BULB REMOVAL/INSTALLATION [(E)].)
3	Auto light sensor (See AUTO LIGHT SENSOR REMOVAL/INSTALLATION.) (See AUTO LIGHT SENSOR INSPECTION.)
4	Side turn light (See SIDE TURN LIGHT REMOVAL/INSTALLATION.) (See SIDE TURN LIGHT INSPECTION.)
5	License plate light (See LICENSE PLATE LIGHT REMOVAL/INSTALLATION.) (See LICENSE PLATE LIGHT INSPECTION.) (See LICENSE PLATE LIGHT BULB REMOVAL/INSTALLATION.) (See LICENSE PLATE LIGHT SHORT-CORD REMOVAL/INSTALLATION.)
6	High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.) (See HIGH-MOUNT BRAKE LIGHT INSPECTION.)
7	Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.) (See REAR COMBINATION LIGHT INSPECTION.) (See REAR TURN LIGHT BULB REMOVAL/INSTALLATION.) (See BRAKE LIGHT BULB REMOVAL/INSTALLATION.) (See TAILLIGHT BULB REMOVAL/INSTALLATION.)
8	Liftgate light (See LIFTGATE LIGHT REMOVAL/INSTALLATION.) (See LIFTGATE LIGHT INSPECTION.) (See BACK-UP LIGHT BULB REMOVAL/INSTALLATION.) (See TAILLIGHT BULB REMOVAL/INSTALLATION.)
9	Rear fog light (See REAR FOG LIGHT REMOVAL/INSTALLATION [(E)].) (See REAR FOG LIGHT INSPECTION [(E)].) (See REAR FOG LIGHT BULB REMOVAL/INSTALLATION [(E)].)

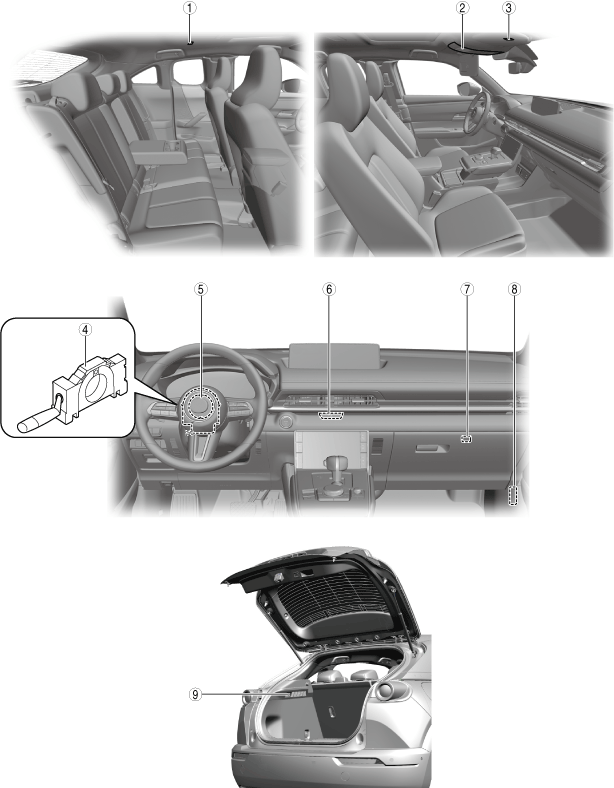

Interior

a30zzw00002959

1	Rear map light (See REAR MAP LIGHT REMOVAL/INSTALLATION.) (See REAR MAP LIGHT INSPECTION.) (See REAR MAP LIGHT BULB REMOVAL/INSTALLATION.)
2	Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION [(E)].) (See FRONT MAP LIGHT INSPECTION.) (See FRONT MAP LIGHT BULB REMOVAL/INSTALLATION.)
3	Vanity mirror illumination (With vanity mirror illumination) (See VANITY MIRROR ILLUMINATION REMOVAL/INSTALLATION.) (See VANITY MIRROR ILLUMINATION INSPECTION.)
4	Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION.) (See LIGHT SWITCH INSPECTION [(E)].)
5	Steering angle sensor (See STEERING ANGLE SENSOR REMOVAL/INSTALLATION.) (See STEERING ANGLE SENSOR INSPECTION.)
6	Hazard warning switch (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.) (See HAZARD WARNING SWITCH INSPECTION.)
7	Glove compartment light (See GLOVE COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION [(E)].)
8	Auto leveling control module (Without adaptive LED headlights) (See AUTO LEVELING CONTROL MODULE REMOVAL/INSTALLATION [(E)].) (See AUTO LEVELING CONTROL MODULE INSPECTION [(E)].) (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION.)
9	Cargo compartment light (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION.) (See CARGO COMPARTMENT LIGHT INSPECTION.) (See CARGO COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION.)
