LIGHTING SYSTEMS LOCATION INDEX

id091800800100

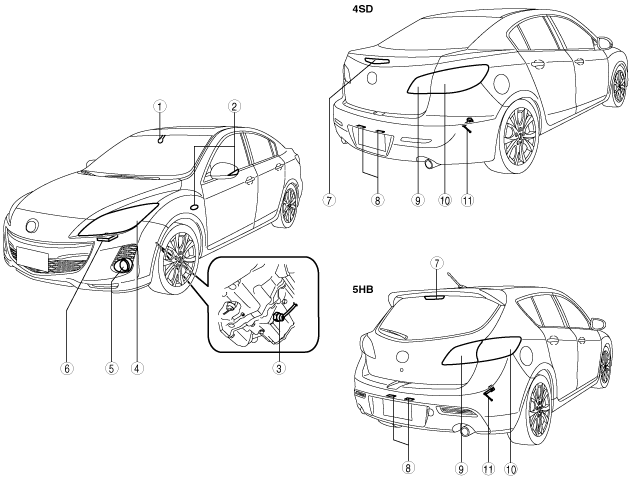

Exterior

am3zzw00011637

1	Auto light sensor (with auto light/wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION.) (See RAIN SENSOR INITIALIZATION SETTING.) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.)
2	Side turn light (See SIDE TURN LIGHT REMOVAL/INSTALLATION.) (See SIDE TURN LIGHT INSPECTION.)
3	Back-up light switch (See BACK-UP LIGHT SWITCH INSPECTION.)
4	Front combination light (Halogen type) (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.) (See HEADLIGHT AIMING.) (See HEADLIGHT BULB REMOVAL/INSTALLATION.) (See FRONT COMBINATION LIGHT BRACKET REPLACEMENT.) (See HEADLIGHT LEVELING ACTUATOR INSPECTION.) (See PARKING LIGHT BULB REMOVAL/INSTALLATION.) (See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION.)
	Front combination light (Discharge type) (See DISCHARGE HEADLIGHT SERVICE WARNINGS.) (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.) (See HEADLIGHT AIMING.) (See HEADLIGHT BULB REMOVAL/INSTALLATION.) (See FRONT COMBINATION LIGHT BRACKET REPLACEMENT.) (See HEADLIGHT LEVELING ACTUATOR OPERATION INSPECTION.) (See PARKING LIGHT BULB REMOVAL/INSTALLATION.) (See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION.)
5	Front fog light (See FRONT FOG LIGHT REMOVAL/INSTALLATION.) (See FRONT FOG LIGHT AIMING.) (See FRONT FOG LIGHT BULB REMOVAL/INSTALLATION.)
6	Discharge headlight control module (with discharge headlight system) (See DISCHARGE HEADLIGHT SERVICE WARNINGS.) (See DISCHARGE HEADLIGHT CONTROL MODULE REMOVAL/INSTALLATION.) (See DISCHARGE HEADLIGHT SYSTEM INSPECTION.)
7	High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.) (See HIGH-MOUNT BRAKE LIGHT DISASSEMBLY/ASSEMBLY.) (See HIGH-MOUNT BRAKE LIGHT BULB REMOVAL/INSTALLATION.)
8	License plate light (See LICENSE PLATE LIGHT REMOVAL/INSTALLATION.) (See LICENSE PLATE LIGHT BULB REMOVAL/INSTALLATION.)
9	Inboard light (See INBOARD LIGHT REMOVAL/INSTALLATION.) (See INBOARD LIGHT BULB REMOVAL/INSTALLATION.)
10	Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.) (See BRAKE/TAILLIGHT BULB REMOVAL/INSTALLATION.) (See REAR TURN LIGHT BULB REMOVAL/INSTALLATION.)
11	Auto leveling sensor (with headlight auto leveling system) (See AUTO LEVELING SENSOR REMOVAL/INSTALLATION.) (See AUTO LEVELING SENSOR INSPECTION.) (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION.)

Interior

am3zzw00010320

1	Headlight leveling switch (with headlight leveling system) (See HEADLIGHT LEVELING SWITCH REMOVAL/INSTALLATION.) (See HEADLIGHT LEVELING SWITCH INSPECTION.)
2	AFS OFF switch (with AFS (Adaptive front lighting system)) (See AFS (ADAPTIVE FRONT LIGHTING SYSTEM) OFF SWITCH REMOVAL/INSTALLATION.) (See AFS (ADAPTIVE FRONT LIGHTING SYSTEM) OFF SWITCH INSPECTION.)
3	Interior light (See INTERIOR LIGHT REMOVAL/INSTALLATION.) (See INTERIOR LIGHT BULB REMOVAL/INSTALLATION.)
4	Indirect illumination (See INDIRECT ILLUMINATION REMOVAL/INSTALLATION.)
5	Vanity mirror illumination (See VANITY MIRROR ILLUMINATION BULB REMOVAL/INSTALLATION.) (See VANITY MIRROR ILLUMINATION INSPECTION.)
6	Map light (See MAP LIGHT REMOVAL/INSTALLATION.) (See MAP LIGHT INSPECTION.) (See MAP LIGHT BULB REMOVAL/INSTALLATION.)
7	Hazard warning switch (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.) (See HAZARD WARNING SWITCH INSPECTION.)
8	Ignition key illumination (with keyless entry system) (See IGNITION KEY ILLUMINATION REMOVAL/INSTALLATION.)
9	AFS control module (with AFS) (See AFS (ADAPTIVE FRONT LIGHTING SYSTEM) CONTROL MODULE REMOVAL/INSTALLATION.) (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION.)
	Auto leveling control module (with headlight auto leveling system) (See AUTO LEVELING CONTROL MODULE REMOVAL/INSTALLATION.) (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION.)
10	Glove compartment light (See GLOVE COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION.)
11	Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION.) (See LIGHT SWITCH INSPECTION.) (See FRONT FOG LIGHT SWITCH INSPECTION.) (See REAR FOG LIGHT SWITCH INSPECTION.)
12	Steering angle sensor (See STEERING ANGLE SENSOR REMOVAL/INSTALLATION.) (See STEERING ANGLE SENSOR INSPECTION.) (See STEERING ANGLE SENSOR INITIALIZATION PROCEDURE.)
13	Combination switch (See COMBINATION SWITCH REMOVAL/INSTALLATION.) (See COMBINATION SWITCH DISASSEMBLY/ASSEMBLY.)
14	Trunk compartment light (4SD) (See TRUNK COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION.)
15	Cargo compartment light (5HB) (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION.) (See CARGO COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION.) (See CARGO COMPARTMENT LIGHT INSPECTION.)
