ENTERTAINMENT LOCATION INDEX

id092000800100

ac8wzw00002450

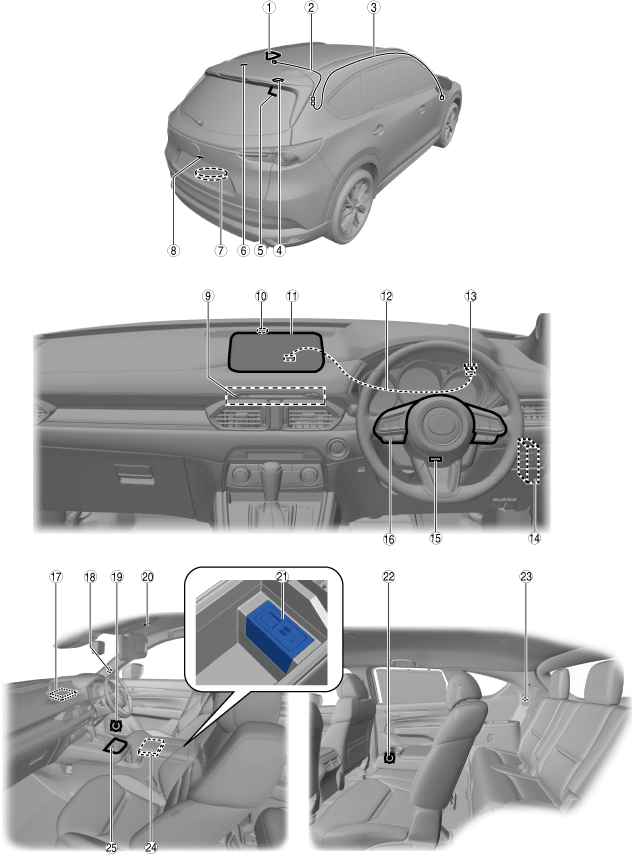

1	Center roof antenna (See CENTER ROOF ANTENNA REMOVAL/INSTALLATION.) (See CENTER ROOF ANTENNA INSPECTION.)
2	Antenna feeder No.2 (See ANTENNA FEEDER NO.2 REMOVAL/INSTALLATION.) (See ANTENNA FEEDER NO.2 INSPECTION.)
3	Antenna feeder No.1 (See ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION.) (See ANTENNA FEEDER NO.1 INSPECTION.)
4	DAB antenna amplifier (with DAB radio) (See DAB ANTENNA AMPLIFIER REMOVAL/INSTALLATION.) (See DAB ANTENNA AMPLIFIER INSPECTION.)
5	Glass antenna (with DAB radio) (See GLASS ANTENNA INSPECTION.)
6	Condenser (See CONDENSER REMOVAL/INSTALLATION.) (See CONDENSER INSPECTION.)
7	Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION.) (See BASS-BOX INSPECTION.)
8	Rear mount camera (with rear mount camera) (See REAR MOUNT CAMERA REMOVAL/INSTALLATION.) (See REAR MOUNT CAMERA INSPECTION.)
9	CD player (with CD player) DVD/CD player (with DVD/CD player) (See CD PLAYER REMOVAL/INSTALLATION.) (See DVD/CD PLAYER REMOVAL/INSTALLATION.)
10	Front center speaker (with Bose®) (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION.) (See FRONT CENTER SPEAKER INSPECTION.)
11	Center display (See CENTER DISPLAY REMOVAL/INSTALLATION.) (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)
12	GPS antenna feeder (See GPS ANTENNA FEEDER REMOVAL/INSTALLATION.) (See GPS ANTENNA FEEDER INSPECTION.)
13	GPS antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION.) (See GPS ANTENNA INSPECTION.)
14	Tuner and amp unit (TAU) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.) (See TUNER AND AMP UNIT (TAU) INSPECTION.) (See TUNER AND AMP UNIT (TAU) BRACKET REMOVAL/INSTALLATION.)
15	AudioPilot ® microphone (with Bose®) (See AudioPilot® MICROPHONE REMOVAL/INSTALLATION.)
16	Steering switch (See STEERING SWITCH REMOVAL/INSTALLATION.) (See STEERING SWITCH INSPECTION.)
17	Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION.) (See CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY.) (See CONNECTIVITY MASTER UNIT (CMU) INSPECTION.) (See Bluetooth® PAIRING PROCEDURE.) (See MAINTENANCE MONITOR OPERATION PROCEDURE.)
18	Tweeter (See TWEETER REMOVAL/INSTALLATION.) (See TWEETER INSPECTION.)
19	Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.) (See FRONT DOOR SPEAKER INSPECTION.)
20	Microphone (See MICROPHONE REMOVAL/INSTALLATION.)
21	Auxiliary jack/USB port/SD card slot hub (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION.) (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB INSPECTION.)
22	Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.) (See REAR DOOR SPEAKER INSPECTION.)
23	Rear speaker (with Bose®) (See REAR SPEAKER REMOVAL/INSTALLATION.) (See REAR SPEAKER INSPECTION.)
24	Audio amplifier (with Bose®) (See AUDIO AMPLIFIER REMOVAL/INSTALLATION.) (See AUDIO AMPLIFIER INSPECTION.)
25	Commander switch (See COMMANDER SWITCH REMOVAL/INSTALLATION.) (See COMMANDER SWITCH INSPECTION.)
