EXTERIOR TRIM LOCATION INDEX

id091600800100

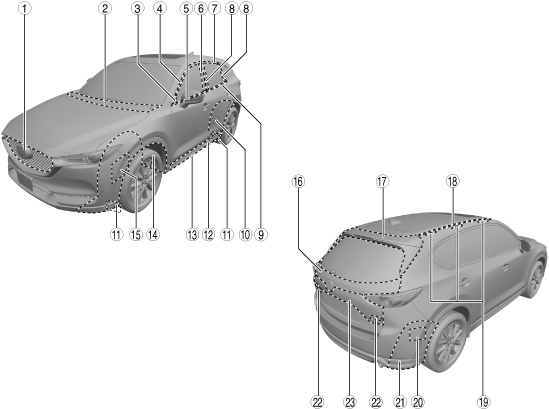

ac5wzw00011047

1	Radiator grille (See RADIATOR GRILLE REMOVAL/INSTALLATION.) (See RADIATOR GRILLE DISASSEMBLY/ASSEMBLY.)
2	Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)
3	Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION.)
4	Front sash molding (See FRONT SASH MOLDING REMOVAL.) (See FRONT SASH MOLDING INSTALLATION.)
5	Front beltline molding (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION.)
6	Front door garnish (See FRONT DOOR GARNISH REMOVAL/INSTALLATION.)
7	Rear sash molding (See REAR SASH MOLDING REMOVAL.) (See REAR SASH MOLDING INSTALLATION.)
8	Rear door garnish (See REAR DOOR GARNISH REMOVAL/INSTALLATION.)
9	Rear beltline molding (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION.)
10	Rear mudguard (See MUDGUARD REMOVAL/INSTALLATION.)
11	Deflector (See DEFLECTOR REMOVAL/INSTALLATION.)
12	Side garnish (rear) (See SIDE GARNISH REMOVAL/INSTALLATION.)
13	Side garnish (front) (See SIDE GARNISH REMOVAL/INSTALLATION.)
14	Front mudguard (See MUDGUARD REMOVAL/INSTALLATION.)
15	Front splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)
16	Liftgate garnish (See LIFTGATE GARNISH REMOVAL/INSTALLATION.)
17	Rear spoiler (See REAR SPOILER REMOVAL/INSTALLATION.)
18	Roof molding (See ROOF MOLDING REMOVAL.) (See ROOF MOLDING INSTALLATION.)
19	Roof carrier bracket (See ROOF CARRIER BRACKET REMOVAL/INSTALLATION.)
20	Extractor chamber (See EXTRACTOR CHAMBER REMOVAL/INSTALLATION.)
21	Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)
22	Ornament (See ORNAMENT INSTALLATION.)
23	Rear finisher (See REAR FINISHER REMOVAL/INSTALLATION.)

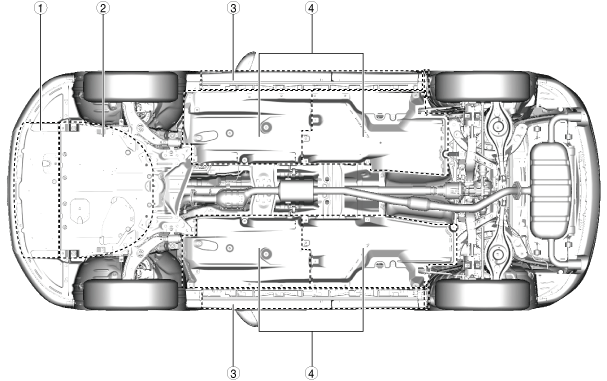

ac5wzw00011048

1	Front under cover No.1 (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)
2	Front under cover No.2 (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
3	Side step molding (See SIDE STEP MOLDING REMOVAL/INSTALLATION.)
4	Floor under cover (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)
