ENTERTAINMENT LOCATION INDEX

id092000800100

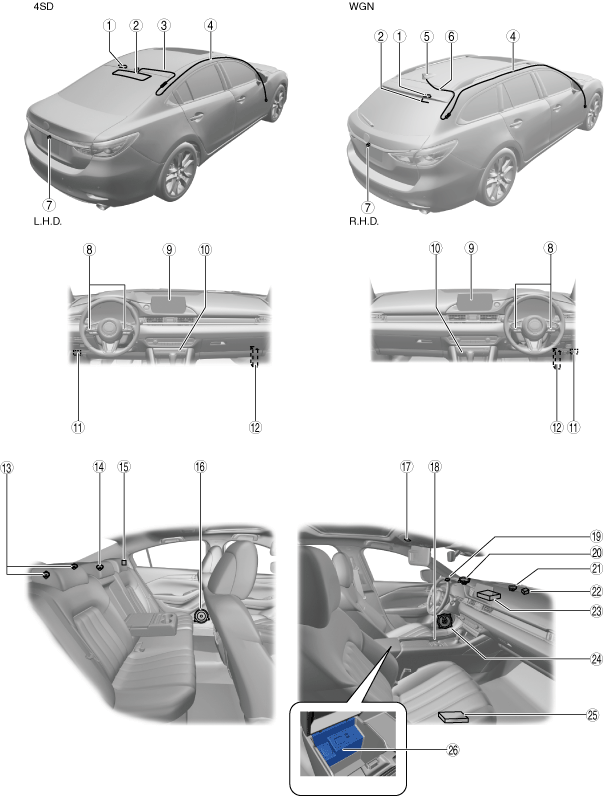

With Center Display

am6zzw00016711

1	DAB antenna amplifier (See DAB ANTENNA AMPLIFIER REMOVAL/INSTALLATION.) (See DAB ANTENNA AMPLIFIER INSPECTION.)
2	4SD Glass antenna (AM/FM antenna) (DAB antenna) (See GLASS ANTENNA INSPECTION.)
	WGN Glass antenna (DAB antenna) (See GLASS ANTENNA INSPECTION.)
3	AM/FM antenna amplifier (See AM/FM ANTENNA AMPLIFIER REMOVAL/INSTALLATION.) (See AM/FM ANTENNA AMPLIFIER INSPECTION.)
4	Antenna feeder No.2 (See ANTENNA FEEDER NO.2 REMOVAL/INSTALLATION.) (See ANTENNA FEEDER NO.2 INSPECTION.)
5	Center roof antenna (See CENTER ROOF ANTENNA REMOVAL/INSTALLATION.) (See CENTER ROOF ANTENNA INSPECTION.)
6	Antenna feeder No.3 (See ANTENNA FEEDER NO.3 REMOVAL/INSTALLATION.) (See ANTENNA FEEDER NO.3 INSPECTION.)
7	Rear mount camera (with parking assist system) (See REAR MOUNT CAMERA REMOVAL/INSTALLATION.) (See REAR MOUNT CAMERA INSPECTION.)
8	Steering switch (See STEERING SWITCH REMOVAL/INSTALLATION.) (See STEERING SWITCH INSPECTION.)
9	Center display (See CENTER DISPLAY REMOVAL/INSTALLATION.) (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)
10	CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)
	DVD/CD player (with DVD/CD player) (See DVD/CD PLAYER REMOVAL.) (See DVD/CD PLAYER INSTALLATION.)
11	AudioPilot ® microphone (with Bose®) (See AudioPilot® MICROPHONE REMOVAL/INSTALLATION.)
12	Tuner and amp unit (TAU) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.) (See TUNER AND AMP UNIT (TAU) BRACKET REMOVAL/INSTALLATION.)
13	Rear speaker (4SD, with Bose®) (See REAR SPEAKER REMOVAL/INSTALLATION.) (See REAR SPEAKER INSPECTION.)
14	Rear speaker (WGN, with Bose®) (See REAR SPEAKER REMOVAL/INSTALLATION.) (See REAR SPEAKER INSPECTION.)
15	Condenser (4SD) (See CONDENSER REMOVAL/INSTALLATION.)
16	Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.) (See REAR DOOR SPEAKER INSPECTION.)
17	Microphone (See MICROPHONE REMOVAL/INSTALLATION.)
18	Commander switch (See COMMANDER SWITCH REMOVAL/INSTALLATION.)
19	Tweeter (See TWEETER REMOVAL/INSTALLATION.) (See TWEETER INSPECTION.)
20	Front side speaker (with Bose®) (See FRONT SIDE SPEAKER REMOVAL/INSTALLATION.) (See FRONT SIDE SPEAKER INSPECTION.)
21	Front center speaker (With Bose®) (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION.) (See FRONT CENTER SPEAKER INSPECTION.)
22	GPS antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION.)
23	Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION.) (See CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY.) (See Bluetooth® PAIRING PROCEDURE.) (See MAINTENANCE MONITOR OPERATION PROCEDURE.)
24	Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.) (See FRONT DOOR SPEAKER INSPECTION.)
25	Audio amplifier (With Bose®) (See AUDIO AMPLIFIER REMOVAL/INSTALLATION.)
26	Auxiliary jack/USB port/SD card slot hub (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION.) (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB INSPECTION.)

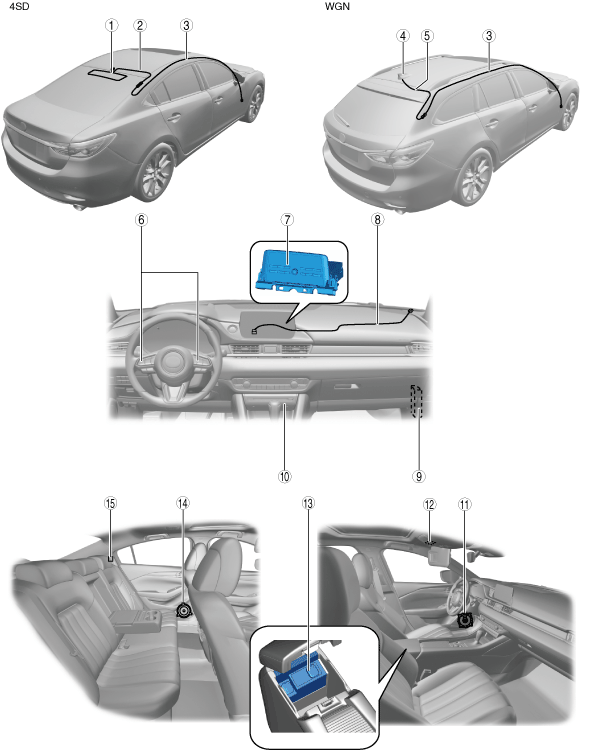

Without Center Display

am6zzw00016712

1	Glass antenna (AM/FM antenna) (See GLASS ANTENNA INSPECTION.)
2	AM/FM antenna amplifier (See AM/FM ANTENNA AMPLIFIER REMOVAL/INSTALLATION.) (See AM/FM ANTENNA AMPLIFIER INSPECTION.)
3	Antenna feeder No.2 (See ANTENNA FEEDER NO.2 REMOVAL/INSTALLATION.) (See ANTENNA FEEDER NO.2 INSPECTION.)
4	Center roof antenna (See CENTER ROOF ANTENNA REMOVAL/INSTALLATION.) (See CENTER ROOF ANTENNA INSPECTION.)
5	Antenna feeder No.3 (See ANTENNA FEEDER NO.3 REMOVAL/INSTALLATION.) (See ANTENNA FEEDER NO.3 INSPECTION.)
6	Steering switch (See STEERING SWITCH REMOVAL/INSTALLATION.) (See STEERING SWITCH INSPECTION.)
7	Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION.)
8	Antenna feeder No.1 (See ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION.) (See ANTENNA FEEDER NO.1 INSPECTION.)
9	Bluetooth® unit (with Bluetooth® system) (See Bluetooth® UNIT REMOVAL/INSTALLATION.) (See Bluetooth® PAIRING PROCEDURE.)
10	CD player (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)
11	Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.) (See FRONT DOOR SPEAKER INSPECTION.)
12	Microphone (with Bluetooth® system) (See MICROPHONE REMOVAL/INSTALLATION.)
13	Auxiliary jack/USB port (See AUXILIARY JACK/USB PORT REMOVAL/INSTALLATION.) (See AUXILIARY JACK/USB PORT INSPECTION.)
14	Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.) (See REAR DOOR SPEAKER INSPECTION.)
15	Condenser (4SD) (See CONDENSER REMOVAL/INSTALLATION.)
