FRONT DRAIN HOSE REMOVAL/INSTALLATION

id091500443800

Driver-side

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(2)  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

(3)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(4)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(5)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(6)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(7)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(8)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(9)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(10)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(11)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(12)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(13)  Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(14)  Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(15)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(16)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(17)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(18)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(19)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(20)  Bass-box (with Bose^®) (See BASS-BOX REMOVAL/INSTALLATION.)

(21)  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

(22)  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)

(23)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(24)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

(25)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(26)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

(27)  Tuner and amp unit (TAU) (R.H.D. only) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.)

(28)  Tuner and amp unit (TAU) bracket (R.H.D. only) (See TUNER AND AMP UNIT (TAU) BRACKET REMOVAL/INSTALLATION.)

3.  Disconnect the front drain hose in the direction of the arrow shown in the figure.

ac8wzw00004063

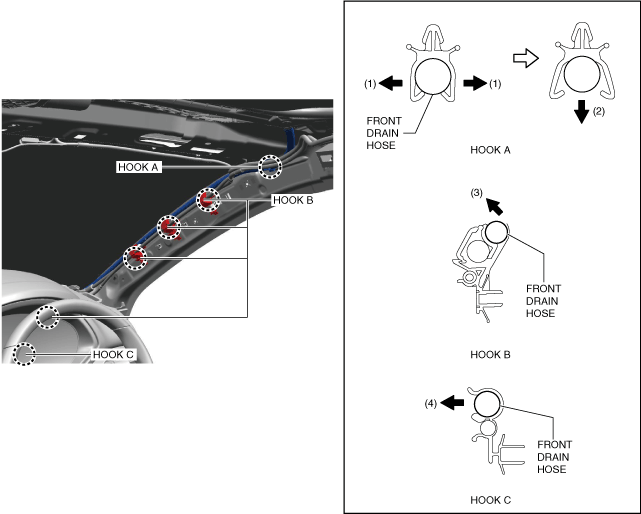

4.  Spread hook A in the directions of arrows (1), pull the front drain hose in the direction of arrow (2), and remove it from hook A.

ac8wzw00004064

5.  Pull the front drain hose in the direction of arrow (3) shown in the figure and remove it from hooks B.

6.  Pull the front drain hose in the direction of arrow (4) shown in the figure and remove it from hook C.

7.  Partially peel back the dashboard lower insulator and insert a tape-wrapped flathead screwdriver into the position shown in the figure.

ac8wzw00004065

8.  Move the tape-wrapped flathead screwdriver in the direction of the arrow shown in the figure and remove the grommet.

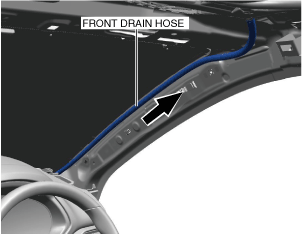

9.  Pull the front drain hose from the A-pillar side and pull it out in the direction of the arrow shown in the figure.

ac5wzw00009002

10.  Install in the reverse order of removal.

Passenger-side

L.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(2)  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

(3)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(4)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(5)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(6)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(7)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(8)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(9)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(10)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(11)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(12)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(13)  Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(14)  Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(15)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(16)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(17)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(18)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(19)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(20)  Bass-box (with Bose^®) (See BASS-BOX REMOVAL/INSTALLATION.)

(21)  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

(22)  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)

(23)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(24)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

(25)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(26)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

(27)  Tuner and amp unit (TAU) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.)

(28)  Tuner and amp unit (TAU) bracket (See TUNER AND AMP UNIT (TAU) BRACKET REMOVAL/INSTALLATION.)

3.  Disconnect the front drain hose in the direction of the arrow shown in the figure.

ac8wzw00004113

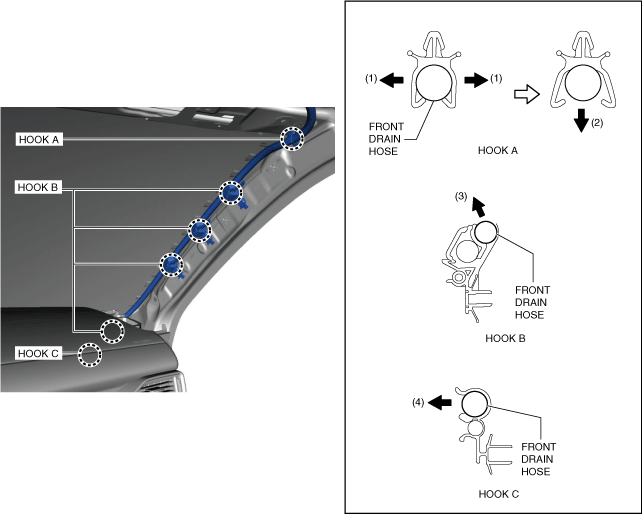

4.  Spread hook A in the directions of arrows (1) shown in the figure, move the front drain hose in the direction of arrow (2), and remove it from hook A.

ac8wzw00004114

5.  Pull the front drain hose in the direction of arrow (3) shown in the figure and remove it from hooks B.

6.  Pull the front drain hose in the direction of arrow (4) shown in the figure and remove it from hook C.

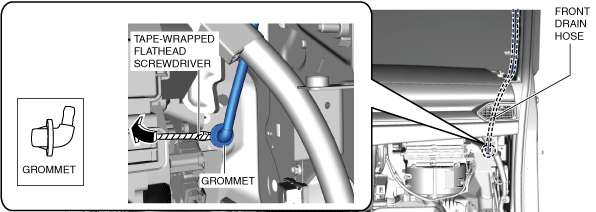

7.  Partially peel back the dashboard lower insulator and insert a tape-wrapped flathead screwdriver into the position shown in the figure.

ac8wzw00004115

8.  Move the tape-wrapped flathead screwdriver in the direction of the arrow shown in the figure and remove the grommet.

9.  Pull the front drain hose in the direction of the arrow shown in the figure.

ac8wzw00004116

10.  Install in the reverse order of removal.

R.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

(1)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(4)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(5)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(6)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(7)  Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(8)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(9)  Upper decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(10)  Meter hood No.1 (See METER HOOD REMOVAL/INSTALLATION.)

(11)  Center display component (See CENTER DISPLAY REMOVAL/INSTALLATION.)

(12)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(13)  Meter hood No.2 (with active driving display) (See METER HOOD REMOVAL/INSTALLATION.)

(14)  Active driving display (with active driving display) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION.)

(15)  Console side panel (rear console) (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(16)  Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(17)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(18)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(19)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(20)  Rear console panel (See REAR CONSOLE PANEL REMOVAL/INSTALLATION.)

(21)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(22)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(23)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(24)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(25)  Cabin temperature sensor and duct hose (See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION.)

(26)  Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(27)  Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

(28)  Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION.)

(29)  Steering column component (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(30)  Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(31)  Indicator unit (See INDICATOR UNIT REMOVAL/INSTALLATION.)

(32)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(33)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(34)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(35)  Selector lever component (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(36)  Selector lever bracket (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(37)  SAS control module (See SAS CONTROL MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(38)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(39)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(40)  Dashboard (See DASHBOARD REMOVAL/INSTALLATION.)

(41)  Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

(42)  Blower unit (See BLOWER UNIT REMOVAL/INSTALLATION.)

(43)  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

(44)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(45)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(46)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(47)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(48)  Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(49)  Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(50)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(51)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(52)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(53)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(54)  Bass-box (with Bose^®) (See BASS-BOX REMOVAL/INSTALLATION.)

(55)  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

(56)  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)

(57)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(58)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

(59)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(60)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

2.  Disconnect the front drain hose in the direction of the arrow shown in the figure.

ac8wzw00004066

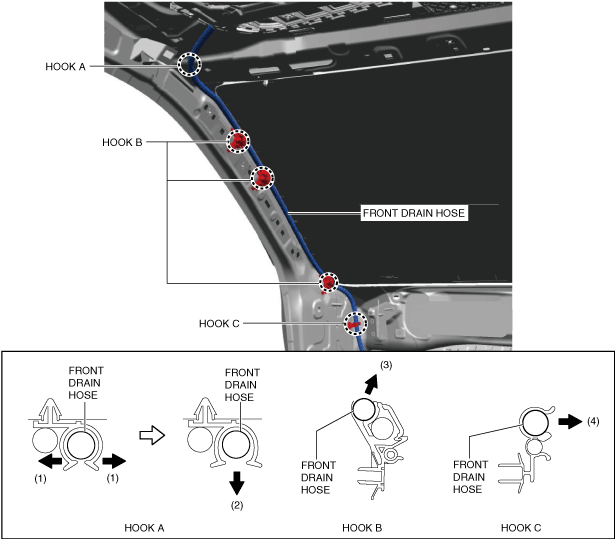

3.  Spread hook A in the directions of arrows (1) shown in the figure, move the front drain hose in the direction of arrow (2), and remove it from hook A.

ac5wzw00009003

4.  Pull the front drain hose in the direction of arrow (3) shown in the figure and remove it from hooks B.

5.  Pull the front drain hose in the direction of arrow (4) shown in the figure and remove it from hook C.

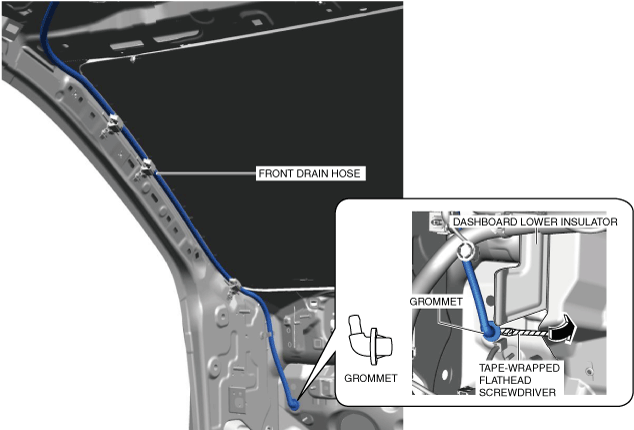

6.  Partially peel back the dashboard lower insulator and insert a tape-wrapped flathead screwdriver into the position shown in the figure.

ac8wzw00004067

7.  Move the tape-wrapped flathead screwdriver in the direction of the arrow shown in the figure and remove the grommet.

8.  Pull the front drain hose in the direction of the arrow shown in the figure.

ac8wzw00004068

9.  Install in the reverse order of removal.
