INTERIOR TRIM LOCATION INDEX

id091700800200

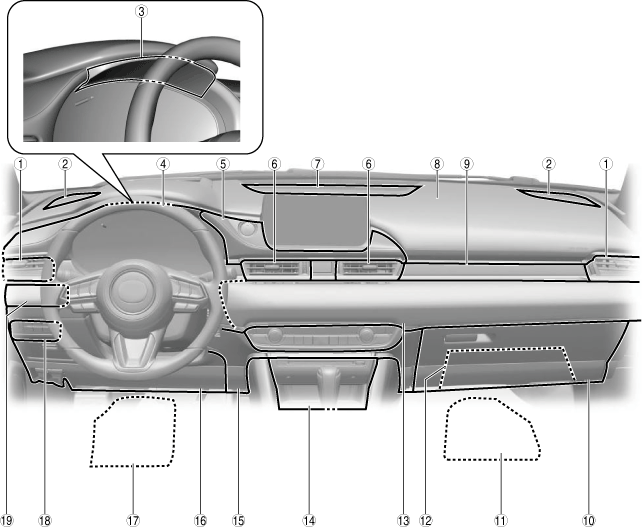

am6zzw00016759

1	Side ventilator grille (See VENTILATOR GRILLE REMOVAL/INSTALLATION.)
2	Side speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)
3	Meter hood cover (See METER HOOD COVER REMOVAL/INSTALLATION.)
4	Meter hood (See METER HOOD REMOVAL/INSTALLATION.)
5	Audio panel (See AUDIO PANEL REMOVAL/INSTALLATION.)
6	Center ventilator grille (See VENTILATOR GRILLE REMOVAL/INSTALLATION.)
7	Center speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)
8	Dashboard (See DASHBOARD REMOVAL/INSTALLATION.) (See DASHBOARD DISASSEMBLY/ASSEMBLY.)
9	Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)
10	Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
11	Foot support (See FOOT SUPPORT REMOVAL/INSTALLATION.)
12	Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
13	Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
14	Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
15	Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
16	Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
17	Heel cushion (See HEEL CUSHION REMOVAL/INSTALLATION.)
18	Cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION.)
19	Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

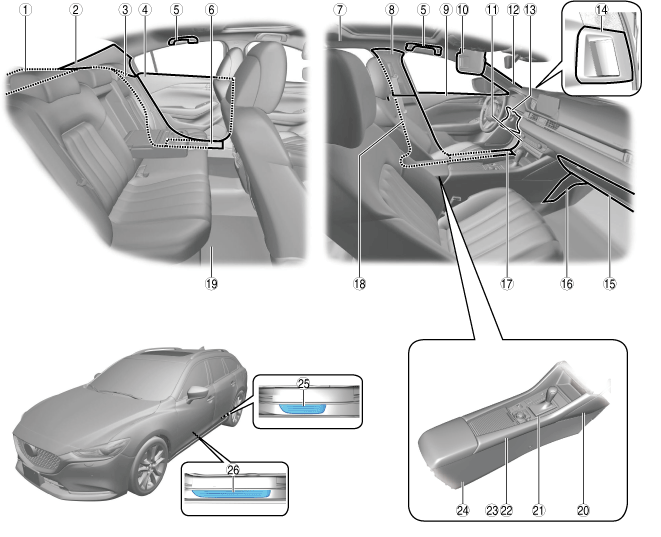

am6zzw00016760

1	Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION.)
2	C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
3	Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
4	Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.) (See REAR DOOR TRIM DISASSEMBLY/ASSEMBLY.)
5	Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
6	Rear scuff plate (inner) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
7	Headliner (See HEADLINER REMOVAL/INSTALLATION.)
8	B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
9	Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.) (See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY.)
10	Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
11	Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
12	A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
13	Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)
14	Meter hood No.2 (See METER HOOD REMOVAL/INSTALLATION.)
15	Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
16	Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
17	Front scuff plate (inner) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
18	B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
19	Floor covering (See FLOOR COVERING REMOVAL/INSTALLATION.)
20	Console side panel No.1 (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)
21	Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
22	Console side panel No.2 (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)
23	Upper panel component (See UPPER PANEL REMOVAL/INSTALLATION.) (See UPPER PANEL DISASSEMBLY/ASSEMBLY.)
24	Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.) (See REAR CONSOLE DISASSEMBLY/ASSEMBLY.)
25	Rear scuff plate (outer) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
26	Front scuff plate (outer) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

am6zzw00016761

1	Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION.)
2	Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)
3	Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)
4	Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)
5	D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
6	Rear speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)
7	Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
8	Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
9	Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
10	Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
11	Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
12	Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
13	Trunk lid recess (See TRUNK LID RECESS REMOVAL/INSTALLATION.)
14	Trunk lid trim (See TRUNK LID TRIM REMOVAL/INSTALLATION.)
