FRONT DRAIN HOSE REMOVAL/INSTALLATION [(E)]
id0915007001x2
-
Warning
-
1. Remove the select lever knob. (See SELECTOR LEVER REMOVAL/INSTALLATION [A71M].)
2. Disconnect the negative lead-acid battery terminal and wait for 1 min or more. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)
3. Remove the following parts:
- (1) Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)
-
- (2) Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)
-
- (3) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
-
- (4) Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)
-
- (5) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
-
- (6) Console bracket (See CONSOLE BRACKET REMOVAL/INSTALLATION.)
-
- (7) Front console upper panel (See FRONT CONSOLE UPPER PANEL REMOVAL/INSTALLATION.)
-
- (8) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)
-
- (9) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
-
- (10) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
-
- (11) Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)
-
- (12) Front pillar trim (See FRONT PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (13) Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (14) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (15) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
-
- (16) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION [(E)].)
-
- (17) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
-
- (18) Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL [(E)].) (See PASSENGER-SIDE LOWER PANEL INSTALLATION [(E)].)
-
- (19) Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)
-
- (20) Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)
-
- (21) Knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)
-
- (22) Center lower panel (See CENTER LOWER PANEL REMOVAL/INSTALLATION.)
-
- (23) Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
-
- (24) Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)
-
- (25) Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
-
- (26) Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)
-
- (27) Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION.)
-
- (28) Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)
-
- (29) Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION.)
-
- (30) Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)
-
- (31) Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
-
- (32) Steering column component (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
-
- (33) Meter hood (See METER HOOD REMOVAL/INSTALLATION.)
-
- (34) Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION [(E)].)
-
- (35) Center speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)
-
- (36) Center display (See CENTER DISPLAY REMOVAL/INSTALLATION.)
-
- (37) Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION [(E)].)
-
- (38) Inverter (With AC power outlet) (See INVERTER REMOVAL/INSTALLATION.)
-
- (39) Dashboard side cover (See DASHBOARD SIDE COVER REMOVAL/INSTALLATION [(E)].)
-
- (40) Rear heat duct No.1 (See REAR HEAT DUCT REMOVAL/INSTALLATION.)
-
- (41) Dashboard (See DASHBOARD REMOVAL [(E)].) (See DASHBOARD INSTALLATION [(E)].)
-
- (42) Blower unit (When removing passenger-side) (See BLOWER UNIT REMOVAL/INSTALLATION.)
-
- (43) Passenger-side cowl side woofer (When removing passenger-side) (See COWL SIDE WOOFER REMOVAL/INSTALLATION [(E)].)
-
- (44) Driver-side cowl side woofer (When removing driver-side) (See COWL SIDE WOOFER REMOVAL/INSTALLATION [(E)].)
-
- (45) Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION [(E)].)
-
- (46) Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION.)
-
- (47) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
-
- (48) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
-
- (49) Roof side trim (See ROOF SIDE TRIM REMOVAL/INSTALLATION.)
-
- (50) Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)
-
- (51) Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
-
- (52) Rear pillar trim (See REAR PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (53) Headliner (See HEADLINER REMOVAL/INSTALLATION.)
-

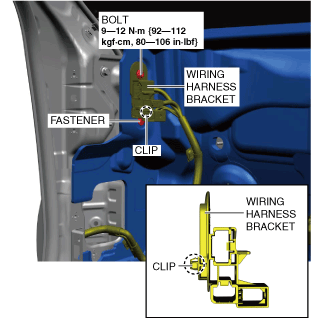

4. Remove the bolt. (When removing from the LH side)
5. Remove the fastener. (When removing the LH side)
6. Remove the harness bracket while removing the clip at the position shown in the figure. (When removing the LH side)

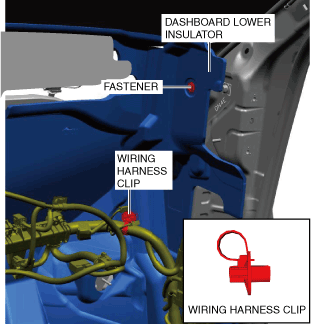

7. Remove the fastener. (When removing the RH side)
8. Remove the wiring harness clip. (When removing the RH side)
9. Set aside the dash lower insulator until the front drain hose can be removed.

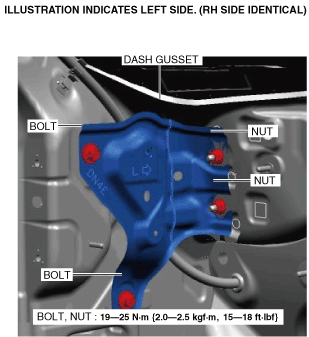

10. Remove the bolts and the nuts.
11. Remove the dash gusset.

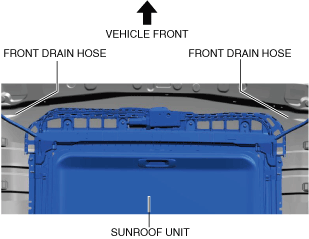

12. Disconnect the front drain hose from the sunroof unit.

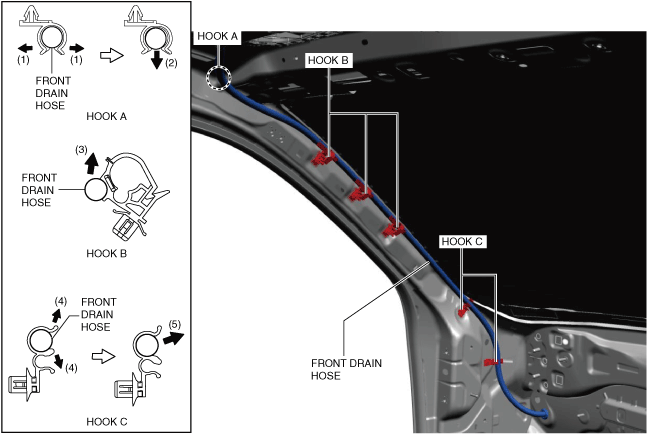

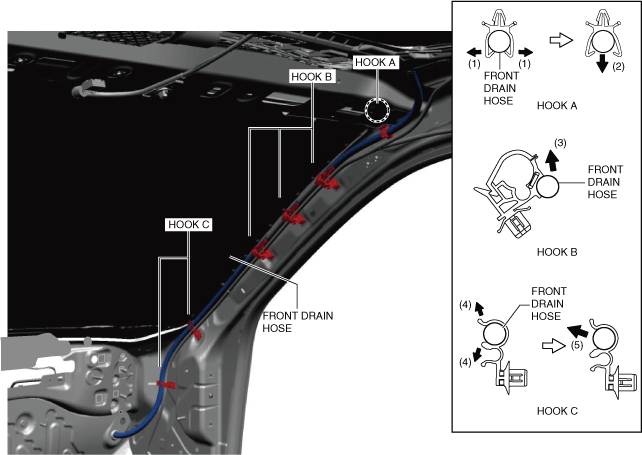

13. Spread hook A in the directions of arrows (1) shown in the figure, move the front drain hose in the direction of arrow (2), and then remove it from hook A.
LH side
RH side
14. Pull the front drain hose in the direction of arrow (3) shown in the figure and remove it from hooks B.
15. Spread hooks C in the direction of arrows (4) shown in the figure, move the front drain hose in the direction of arrow (5), and then remove it from hooks C.

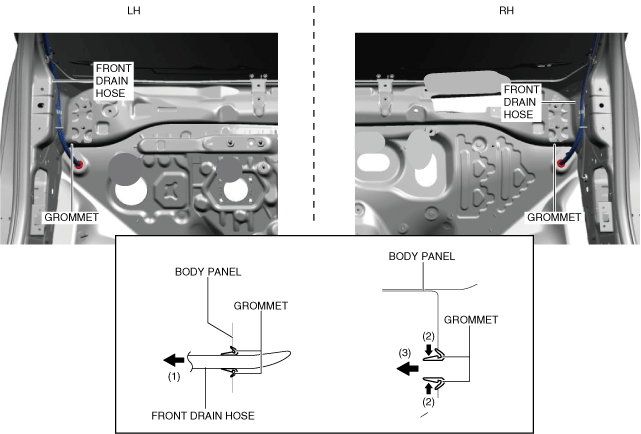

16. Move the front drain hose in the direction of arrow (1) as shown in the figure and remove the front drain hose from the grommet.
17. Move the grommet in the order indicated by arrows (2) and (3) to remove it from the body panel.
18. Remove the front drain hose.
19. Install in the reverse order of removal.
