INTERIOR TRIM LOCATION INDEX

id091700800200

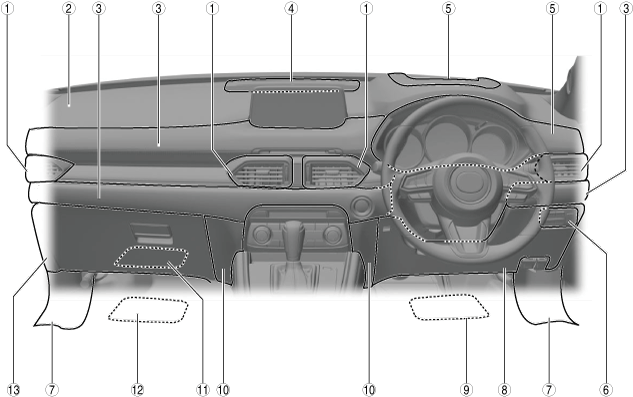

ac8jjw00000872

1	Ventilator grille (See VENTILATOR GRILLE REMOVAL/INSTALLATION.)
2	Dashboard (See DASHBOARD REMOVAL/INSTALLATION.) (See DASHBOARD DISASSEMBLY/ASSEMBLY.)
3	Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.) (See DECORATION PANEL DISASSEMBLY/ASSEMBLY.)
4	Speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)
5	Meter hood (See METER HOOD REMOVAL/INSTALLATION.) (See METER HOOD DISASSEMBLY/ASSEMBLY.)
6	Cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION.)
7	Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
8	Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
9	Heel cushion (See HEEL CUSHION REMOVAL/INSTALLATION.)
10	Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
11	Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
12	Foot support (See FOOT SUPPORT REMOVAL/INSTALLATION.)
13	Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

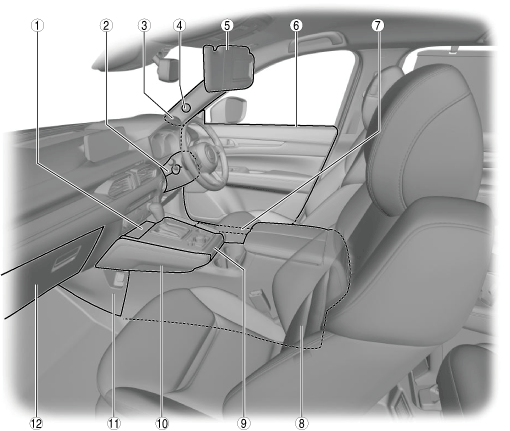

ac8jjw00000873

1	Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
2	Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)
3	A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
4	Speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)
5	Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
6	Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.) (See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY.)
7	Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
8	Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.) (See REAR CONSOLE DISASSEMBLY/ASSEMBLY.) (See CONSOLE LID REMOVAL/INSTALLATION.) (See CUP HOLDER REMOVAL/INSTALLATION.)
9	Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.) (See SHIFT PANEL DISASSEMBLY/ASSEMBLY.)
10	Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)
11	Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
12	Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

ac8wzw00004119

1	Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
2	B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
3	B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
4	Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.) (See REAR DOOR TRIM DISASSEMBLY/ASSEMBLY.)
5	C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
6	D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
7	Headliner (See HEADLINER REMOVAL/INSTALLATION.)
8	Speaker grille (with Bose®) (See SPEAKER GRILLE REMOVAL/INSTALLATION.)
9	Second-row seat console box (with second-row seat console box) (See REAR CONSOLE REMOVAL/INSTALLATION.) (See REAR CONSOLE DISASSEMBLY/ASSEMBLY.) (See CONSOLE LID REMOVAL/INSTALLATION.) (See CUP HOLDER REMOVAL/INSTALLATION.)
10	Console side panel (second-row seat console box) (with second-row seat console box) (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)
11	Floor covering (See FLOOR COVERING REMOVAL/INSTALLATION.)
12	Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
13	Rear console-up (See REAR CONSOLE-UP REMOVAL/INSTALLATION.)
14	Ventilator grille (See VENTILATOR GRILLE REMOVAL/INSTALLATION.)
15	Rear console panel (with cup holder) (See REAR CONSOLE PANEL REMOVAL/INSTALLATION.) (See REAR CONSOLE PANEL DISASSEMBLY/ASSEMBLY.)
16	Rear console panel (without cup holder) (See REAR CONSOLE PANEL REMOVAL/INSTALLATION.) (See REAR CONSOLE PANEL DISASSEMBLY/ASSEMBLY.)

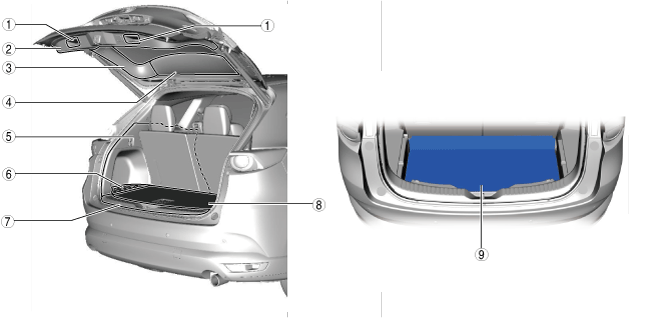

ac8wzw00001612

1	Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION.)
2	Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)
3	Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)
4	Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)
5	Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
6	Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
7	Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
8	Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
9	Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
